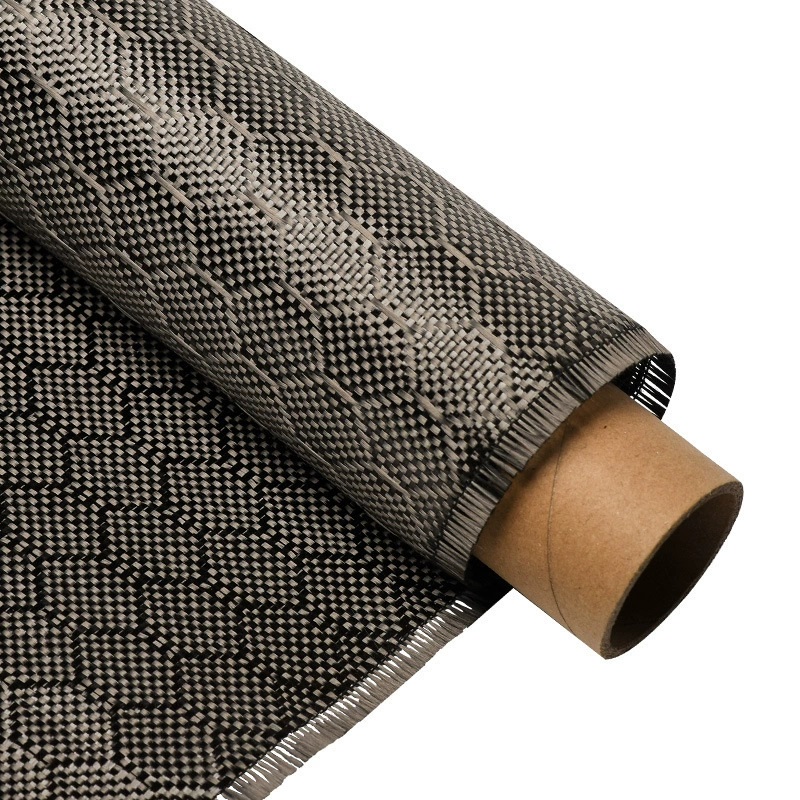

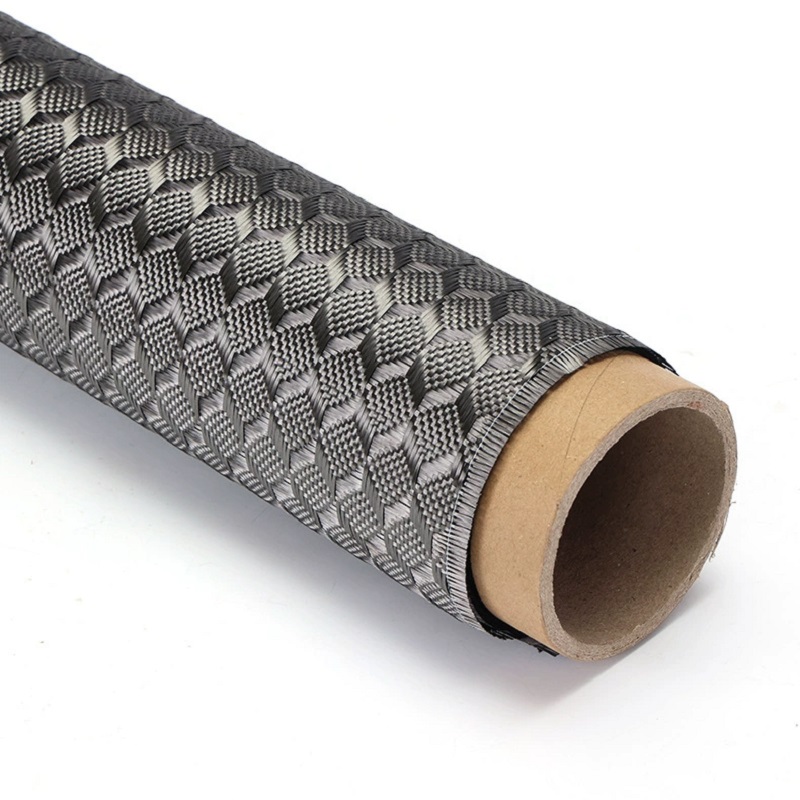

3K 240g Carbon Fiber Football Pattern Fabric
Key Performance & Specifications
Crafted from 3K carbon fiber filaments (3,000 filaments per tow) with 240gsm areal weight, this fabric boasts outstanding mechanical properties: density of 1.79g/cm³, tensile strength up to 4120MPa, tensile modulus 234GPa, and UV-stable performance, balancing lightweight design (1/5 the weight of steel) with superior durability and shape retention. It is fully compatible with epoxy, polyester, and vinyl ester resins, easy to cut and mold into complex shapes.
Core Advantages

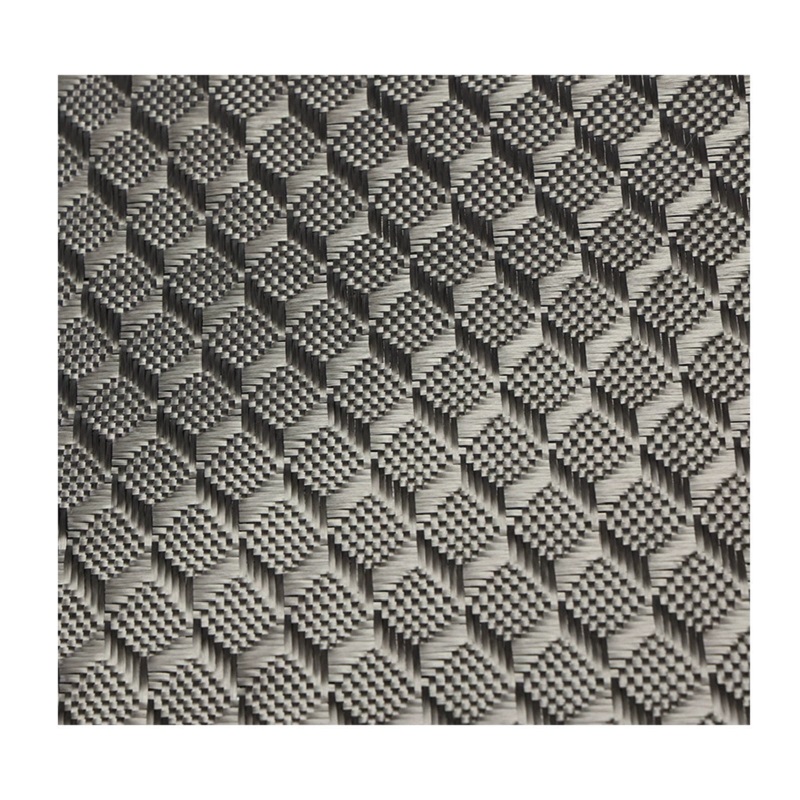

- Unique Football Pattern: Special geometric bionic weave (hexagonal/pentagonal honeycomb structure) offers strong 3D visual sense, high design tension, and better stress dispersion than plain weave.
- Superior Strength-to-Weight Ratio: 10 times stronger than steel, lightweight, ensuring structural stability without adding extra weight.
- Durable & Versatile: Corrosion-resistant, wear-resistant, and easy to process, suitable for various molding techniques like hand laminating and vacuum bagging.
- Fine Texture: 3K fine filaments create a smooth, uniform surface, ideal for appearance-focused products.
Main Applications
Perfect for high-end products requiring both performance and aesthetics: high-end sports equipment (bicycle frames, golf clubs), automotive interiors/exteriors, electronic device casings, luxury accessories, and decorative components. It is also suitable for light structural reinforcement in consumer and industrial scenarios.

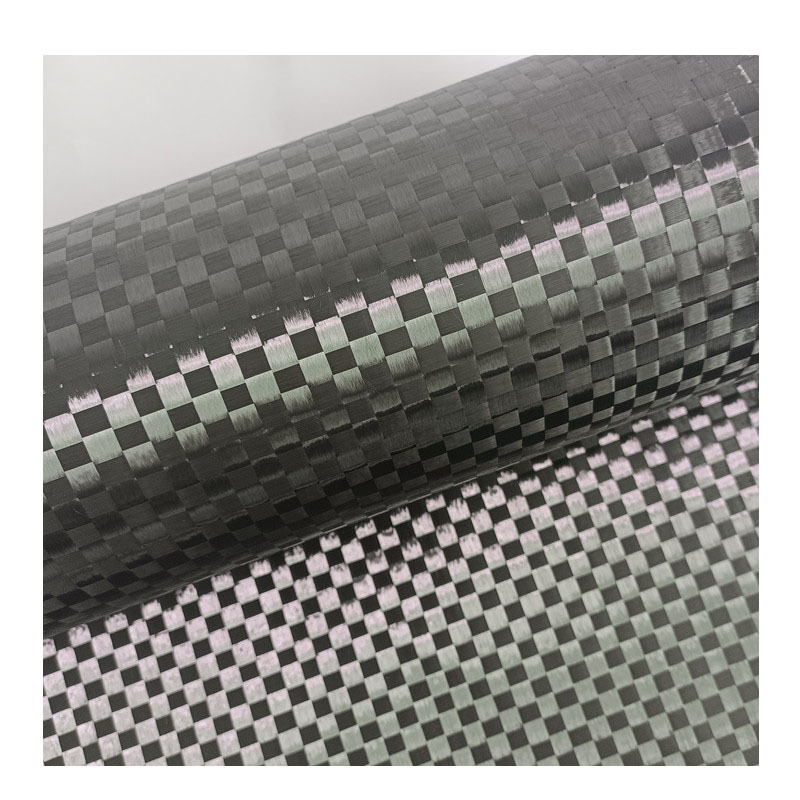

carbon fibre cloth is a high-quality woven fabric made from 100% carbon fiber filaments, available in various weaves (plain, twill, unidirectional), fiber counts (3K, 6K, 12K, 24K), and weights (200gsm, 240gsm, 300gsm, 650gsm) to suit diverse project needs. Crafted with advanced weaving technology, it maintains consistent thickness, uniform fiber distribution, and excellent compatibility with epoxy, polyester, and vinyl ester resins, making it easy to laminate and mold into complex shapes while retaining structural integrity.
Whether you need carbon fibre cloth for structural reinforcement, lightweight manufacturing, or high-performance components, our product is designed to exceed industry standards, backed by strict quality control and SGS certification for reliability you can trust.
