Diamond Grinding Wheels: A Complete Guide to Features, Tech, Advantages & Applications

What Are Diamond Grinding Wheels?

Diamond grinding wheels are abrasive tools composed of three core components:

Diamond Abrasive Grain: The cutting medium, made from either natural diamond (rare, high-cost) or synthetic diamond (more common, engineered for consistency). Synthetic diamond grains are often coated (e.g., with nickel or titanium) to improve adhesion to the bond and resist wear.
Bond Matrix: Holds the diamond grains in place and controls how quickly grains “break down” (wear) during use. Common bond types include resin, metal, vitrified, and electroplated (more on this in the Technical Info section).
Pore Structure: Tiny gaps between the bond and grains that allow coolant flow, chip removal, and prevent clogging—critical for maintaining precision in high-heat applications.

Key Features of Diamond Grinding Wheels

Diamond grinding wheels are defined by features that make them ideal for challenging materials. Here are the most important ones to consider:

1. Exceptional Hardness & Wear Resistance

Diamond ranks a 10 on the Mohs hardness scale (the highest possible), meaning it can grind materials with hardness up to 9 Mohs—including alumina ceramics, silicon carbide, glass, and tungsten carbide. Unlike aluminum oxide or silicon carbide wheels (which wear down quickly on hard materials), diamond wheels retain their shape and cutting efficiency for 50–100x longer, reducing tool replacement costs.

2. Precision Grinding Capabilities

With grain sizes as fine as 0.5 μm (micrometers), diamond wheels achieve surface finishes as smooth as Ra 0.01 μm—critical for optical components, semiconductor substrates, and medical devices where even minor imperfections cause failure.

3. Heat Resistance & Cool Cutting

Diamond has a thermal conductivity 5x higher than copper, allowing it to dissipate heat rapidly during grinding. This minimizes “thermal damage” (e.g., cracks, burns, or material warping) in heat-sensitive materials like glass, quartz, and advanced ceramics.

4. Customizability

Manufacturers tailor diamond wheels to specific applications by adjusting:

Grain size (coarse for fast material removal, fine for finishing).
Bond type (resin for low-heat applications, metal for heavy-duty grinding).

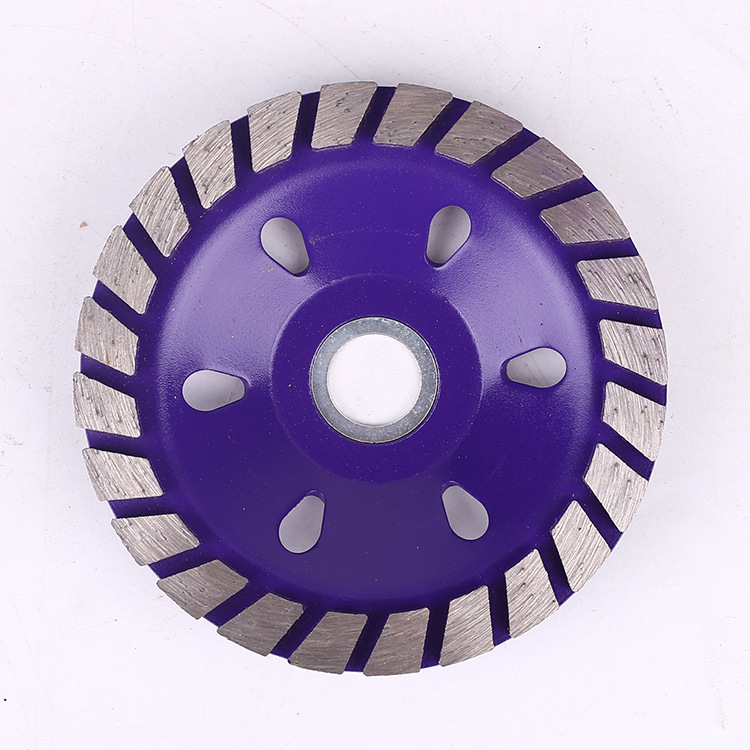

Wheel shape (flat, cup, dish, or radius) to match the workpiece’s geometry.

Technical Information: How Diamond Grinding Wheels Work

To choose the right diamond wheel, understanding its technical specifications is essential. Below are the most critical technical parameters:

1. Bond Type: The “Backbone” of the Wheel

The bond determines the wheel’s durability, cutting speed, and suitability for different materials. Here’s how the four main bond types compare:

Bond Type	Key Properties	Best For
Resin Bond	Flexible, low heat generation, fast cutting. Breaks down gradually to expose new diamond grains.	Finishing operations (e.g., optical glass, semiconductor wafers), materials prone to thermal damage.
Metal Bond	High hardness, wear resistance, and rigidity. Ideal for heavy stock removal.	Grinding hard metals (tungsten carbide), concrete, and stone. Requires coolant to prevent overheating.
Vitrified Bond	High temperature resistance, excellent shape retention, and low clogging.	Precision grinding of ceramics, carbide tools, and bearing steel. Used in high-speed grinding (HSG) machines.
Electroplated Bond	Thin, dense bond layer with exposed diamond grains. Offers maximum cutting efficiency.	Profiled grinding (e.g., turbine blades, mold cavities) and small-batch production.

2. Diamond Concentration

Concentration refers to the amount of diamond grain in the wheel (measured as carats per cubic centimeter). Common concentrations range from 50% to 150%:

50–75%: Light-duty grinding (e.g., finishing glass).
100%: General-purpose grinding (e.g., carbide tools).
125–150%: Heavy-duty grinding (e.g., concrete, stone).

Higher concentration = longer wheel life but higher cost.

3. Grain Size

Grain size is labeled by a mesh number (e.g., 80# = coarse, 1000# = fine) or micrometer (μm) size. The rule of thumb:

Coarse grains (80#–220#): Fast material removal (e.g., shaping ceramic blocks).
Medium grains (320#–600#): Balanced removal and finish (e.g., grinding carbide inserts).
Fine grains (800#–2000#): High-precision finishing (e.g., optical lenses, semiconductor wafers).

4. Wheel Speed

Diamond wheels operate at specific peripheral speeds (measured in meters per second, m/s) to optimize performance:

Resin bond: 20–35 m/s (low to medium speed).
Metal bond: 15–25 m/s (medium speed, requires coolant).
Vitrified bond: 30–50 m/s (high speed, ideal for HSG).

Exceeding the recommended speed can cause the wheel to crack or the diamond grains to dislodge.

Advantages of Diamond Grinding Wheels Over Traditional Abrasives

Traditional abrasive wheels (e.g., aluminum oxide, silicon carbide) are cheaper, but they fall short in performance when grinding hard or precision materials. Here’s why diamond wheels are worth the investment:

1. Longer Tool Life

As mentioned earlier, diamond wheels last 50–100x longer than aluminum oxide wheels when grinding hard materials. For example, a diamond wheel can grind 10,000 carbide inserts before needing replacement, while an aluminum oxide wheel might only handle 100. This reduces downtime for tool changes and lowers long-term costs.

2. Higher Grinding Efficiency

Diamond’s hardness allows it to cut through materials faster than traditional abrasives. For instance, grinding a 10mm-thick alumina ceramic plate with a diamond wheel takes 2–3 minutes, compared to 10–15 minutes with a silicon carbide wheel.

3. Superior Surface Quality

Traditional wheels often leave “scratches” or “micro-cracks” on hard materials, requiring additional polishing steps. Diamond wheels produce a mirror-like finish in one pass, eliminating the need for post-grinding processing and saving time.

4. Reduced Material Waste

Precision grinding with diamond wheels minimizes “over-grinding” (removing more material than necessary). This is critical for expensive materials like semiconductor wafers (where a single wafer can cost $1,000+) or medical-grade ceramics.

5. Versatility

Unlike traditional wheels (which are limited to metals or soft materials), diamond wheels grind a wide range of substrates: glass, quartz, ceramics, carbide, stone, concrete, and even synthetic materials like carbon fiber reinforced polymer (CFRP).

Applications: Where Diamond Grinding Wheels Are Used

Diamond grinding wheels are integral to industries that demand precision and durability. Below are their most common use cases:

1. Semiconductor & Electronics Industry

Grinding silicon wafers (used in microchips) to achieve ultra-flat surfaces (±0.5 μm flatness).
Shaping gallium arsenide (GaAs) and silicon carbide (SiC) substrates for power electronics and 5G devices.
Polishing LED chips to enhance light output.

2. Aerospace & Automotive

Grinding turbine blades (made from titanium or Inconel) to tight tolerances (±0.01 mm) for engine efficiency.
Shaping ceramic brake discs (used in high-performance cars) for heat resistance and longevity.
Finishing carbide tool bits (used in aircraft engine machining) to maintain sharp edges.

3. Optical & Medical Industries

Polishing optical lenses (glass or plastic) for cameras, telescopes, and eyeglasses to achieve scratch-free surfaces.
Grinding medical implants (e.g., ceramic hip joints, titanium bone screws) to meet biocompatibility standards and precise fit.
Shaping quartz crucibles (used in semiconductor manufacturing) to hold molten silicon.

4. Construction & Stone Processing

Grinding concrete floors to create smooth, level surfaces for commercial buildings.
Shaping natural stone (marble, granite) for countertops, tiles, and monuments.
Polishing engineered stone (e.g., quartzite) to enhance its aesthetic appeal.

5. Tool & Die Manufacturing

Sharpening carbide end mills, drills, and punch tools to restore cutting performance.
Grinding mold cavities (used in plastic injection molding) to precise shapes and surface finishes.

How to Choose the Right Diamond Grinding Wheel

Selecting the correct wheel depends on three factors:

Workpiece Material: Choose a bond type that matches the material’s hardness (e.g., metal bond for carbide, resin bond for glass).
Grinding Goal: Coarse grain for material removal, fine grain for finishing.
Machine Compatibility: Ensure the wheel’s speed and size match your grinding machine’s specifications.

For example:

If you’re grinding a silicon wafer (soft, heat-sensitive), a resin bond wheel with 1000# grain is ideal.
If you’re shaping a tungsten carbide tool (hard, heavy-duty), a metal bond wheel with 220# grain works best.
