HSS Countersinks: Unveiling the Precision Powerhouses of Cutting Tools
In the dynamic realm of machining and fabrication, selecting the right cutting tools is paramount for achieving optimal results. Among the essential tools in the arsenal of professionals and enthusiasts alike, High – Speed Steel (HSS) countersinks stand out as reliable and versatile performers. In this article, we will take an in – depth look at HSS countersinks, exploring their technical data, specifications, applications, and advantages. Additionally, we’ll highlight the contributions of Shanghai Easydrill, a leading cutting tools and drill bits manufacturer in China, in crafting high – quality HSS countersinks.
Technical Data
Material Composition
High – Speed Steel, the material that gives HSS countersinks their name, is an alloy steel renowned for its ability to maintain hardness even at elevated temperatures. Typically, HSS contains a combination of elements such as tungsten, molybdenum, chromium, and vanadium. These elements work in harmony to provide excellent wear resistance, toughness, and heat resistance. For instance, tungsten and molybdenum contribute to the high – temperature hardness, while chromium enhances corrosion resistance, and vanadium improves the tool’s strength and wear resistance. This unique composition allows HSS countersinks to cut through a variety of materials with ease, from metals like aluminum, steel, and brass to non – metals such as plastics and wood.
Cutting Edge Geometry
The cutting edge geometry of HSS countersinks is a critical factor in their performance. Most HSS countersinks feature an optimized flute design. The flutes, which are the helical grooves on the body of the countersink, play a crucial role in chip evacuation. They help to clear the chips generated during the cutting process, preventing them from clogging and causing damage to the workpiece or the tool itself. Additionally, the rake angle, which is the angle between the cutting edge and the surface of the workpiece, is carefully designed to ensure efficient cutting. A positive rake angle reduces the cutting forces, making the cutting process smoother and requiring less power from the drilling machine. The relief angle, on the other hand, provides clearance between the tool and the workpiece, preventing excessive friction and heat generation.
Heat Treatment
To maximize the performance of HSS countersinks, they undergo a meticulous heat treatment process. This process typically involves heating the HSS to a high temperature, followed by rapid cooling (quenching) and then tempering. Quenching hardens the steel by transforming its crystal structure, while tempering reduces the brittleness and increases the toughness of the material. The heat treatment process ensures that the HSS countersink maintains its hardness and cutting ability even during prolonged use, making it suitable for demanding machining applications.
Specifications
Diameter Range

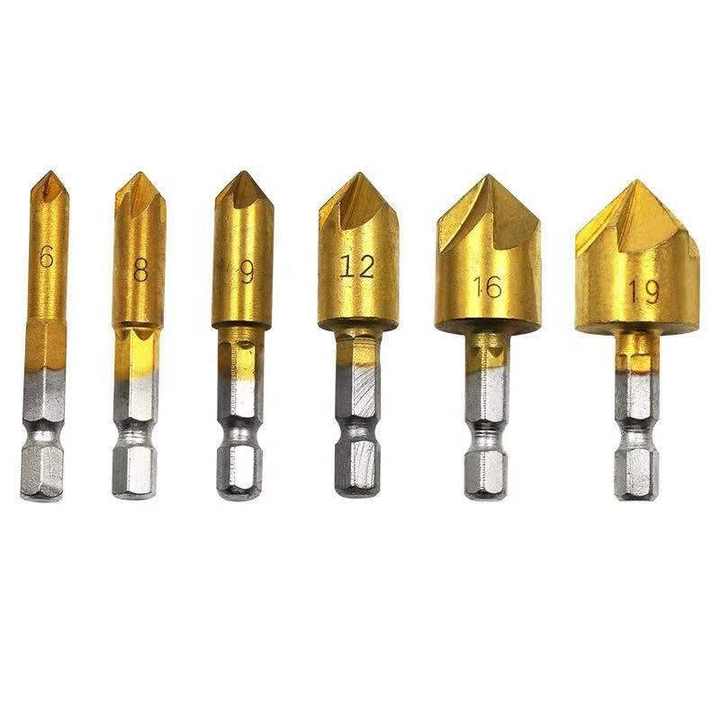

HSS countersinks are available in a wide range of diameters to meet the diverse needs of different projects. The diameter can range from as small as 1mm for delicate work, such as in the electronics industry where precision is of utmost importance, to as large as 50mm or more for heavy – duty applications in construction or metal fabrication. The choice of diameter depends on the size of the screw head or the recess required in the workpiece. For example, a smaller diameter countersink may be used for attaching small screws in a jewelry box, while a larger diameter one would be needed for installing bolts in a steel framework.
Length
The length of HSS countersinks also varies. Shorter lengths, usually around 20 – 50mm, are suitable for shallow countersinking operations, such as when working with thin materials or creating a small recess for a flat – head screw. Longer lengths, ranging from 50 – 150mm or more, are ideal for deeper holes or when working with thicker materials. Longer countersinks provide better reach and stability, especially when drilling through multiple layers of material or when the workpiece is relatively large.
Flute Length and Number
The flute length of an HSS countersink is related to the depth of the countersink it can create. A longer flute length allows for deeper countersinking. The number of flutes also affects the performance of the countersink. While most HSS countersinks have three flutes, some may have two or four. Three – fluted countersinks are a popular choice as they offer a good balance between cutting efficiency and stability. Two – fluted countersinks may be used for softer materials or when a faster chip evacuation is required, while four – fluted countersinks can provide a smoother finish and are suitable for more precise applications.
Applications
Woodworking
In woodworking, HSS countersinks are indispensable. They are used to create countersunk holes for screws, ensuring that the screw heads sit flush with the surface of the wood. This not only gives a neat and professional appearance but also prevents the screw heads from snagging on clothing or other objects. HSS countersinks can easily cut through different types of wood, from softwoods like pine to hardwoods like oak. They are also used for deburring holes in wood, removing any rough edges left by the drill bit and creating a smooth surface for a better fit of dowels or other joinery elements.
Metalworking
Metalworking is another major area where HSS countersinks shine. They are used to countersink holes for screws and bolts in metals such as steel, aluminum, and copper. The high hardness and wear resistance of HSS allow it to cut through these metals without dulling quickly. HSS countersinks are also used for deburring metal holes, removing sharp edges that can be dangerous and can cause damage to other components. In the automotive and aerospace industries, where precision and quality are critical, HSS countersinks are used to create accurate and consistent countersunk holes for assembly purposes.
Plastic Fabrication
Plastic fabrication also benefits from the use of HSS countersinks. They can be used to create countersunk holes in plastics for various applications, such as attaching plastic parts together with screws or for aesthetic purposes. The ability of HSS countersinks to cut cleanly through plastics without causing excessive melting or cracking makes them a preferred choice in this industry. Whether it’s for manufacturing plastic enclosures for electronic devices or creating custom – made plastic furniture, HSS countersinks play an important role in achieving a professional – looking finish.
Advantages
Cost – Effectiveness
One of the significant advantages of HSS countersinks is their cost – effectiveness. Compared to more advanced materials like tungsten carbide, HSS is relatively affordable, making HSS countersinks a budget – friendly option for many users. Despite their lower cost, HSS countersinks offer excellent performance for a wide range of applications, providing a good balance between price and quality. They are a great choice for both small – scale projects and large – scale manufacturing operations where cost control is important.
Versatility
HSS countersinks are highly versatile tools. They can be used with a variety of drilling machines, including hand drills, bench drills, and CNC machines. Their ability to cut through different materials, from metals to plastics and wood, makes them suitable for multiple industries and applications. Whether you’re a DIY enthusiast working on a home improvement project or a professional machinist in a manufacturing plant, an HSS countersink is likely to be a useful addition to your toolbox.
Ease of Use
HSS countersinks are relatively easy to use, even for those with limited machining experience. Their design and performance characteristics make them forgiving and user – friendly. The optimized cutting edge geometry and flute design ensure smooth cutting, reducing the likelihood of the tool getting stuck or causing damage to the workpiece. Additionally, they can be easily sharpened when they start to dull, extending their lifespan and reducing the need for frequent replacements.
Shanghai Easydrill: A Cut Above the Rest
Shanghai Easydrill has earned a reputation as a leading manufacturer of cutting tools and drill bits in China, and their HSS countersinks are a testament to their commitment to quality and innovation. The company utilizes state – of – the – art manufacturing processes and adheres to strict quality control measures to ensure that each HSS countersink meets or exceeds international standards.
Shanghai Easydrill’s HSS countersinks are crafted from high – grade HSS materials, ensuring superior performance and durability. Their advanced heat treatment processes further enhance the hardness and toughness of the countersinks, making them capable of withstanding the rigors of demanding machining applications. The company also offers a wide range of HSS countersinks in different diameters, lengths, and flute configurations, catering to the diverse needs of customers from various industries.
Whether it’s for industrial applications or for hobbyists, Shanghai Easydrill’s HSS countersinks provide reliable and precise performance. Their dedication to research and development means that they are constantly improving and innovating their products, staying ahead of the curve in the highly competitive cutting tools market.
In conclusion, HSS countersinks are essential tools in the world of machining and fabrication. Their technical features, diverse specifications, wide range of applications, and numerous advantages make them a valuable asset for any user. With manufacturers like Shanghai Easydrill at the forefront of the industry, providing high – quality HSS countersinks, professionals and enthusiasts can be confident in their choice of cutting tools to achieve outstanding results in their projects.
Post time: Apr-29-2025
