Diamond Hole Saw: Ultimate Guide to Features, Advantages, Tech Specs & Applications

What is a Diamond Hole Saw?

A diamond hole saw is a cylindrical cutting tool designed to create holes (typically 6mm to 100mm+ in diameter) in hard, brittle materials. Its defining feature is the diamond-embedded cutting edge—diamond particles are bonded to the saw’s rim using advanced techniques like electroplating or brazing, enabling it to grind through materials with extreme hardness. Unlike toothed hole saws that “cut” by shearing material, diamond hole saws work by abrasion: the diamond particles wear away the workpiece, producing smooth, precise holes without cracking or chipping.

Key Features of Diamond Hole Saws

1. Diamond Cutting Edge: The Hardest Cutting Surface

The core feature of any diamond hole saw is its diamond-embedded rim, which determines its cutting performance and durability:

Diamond Quality: Most diamond hole saws use synthetic industrial diamonds (polycrystalline diamond, PCD) or natural diamonds. Synthetic diamonds are cost-effective and engineered for abrasion resistance, making them ideal for general use. Premium models use high-grade PCD for cutting ultra-hard materials like granite or sintered stone.
Bonding Technology:

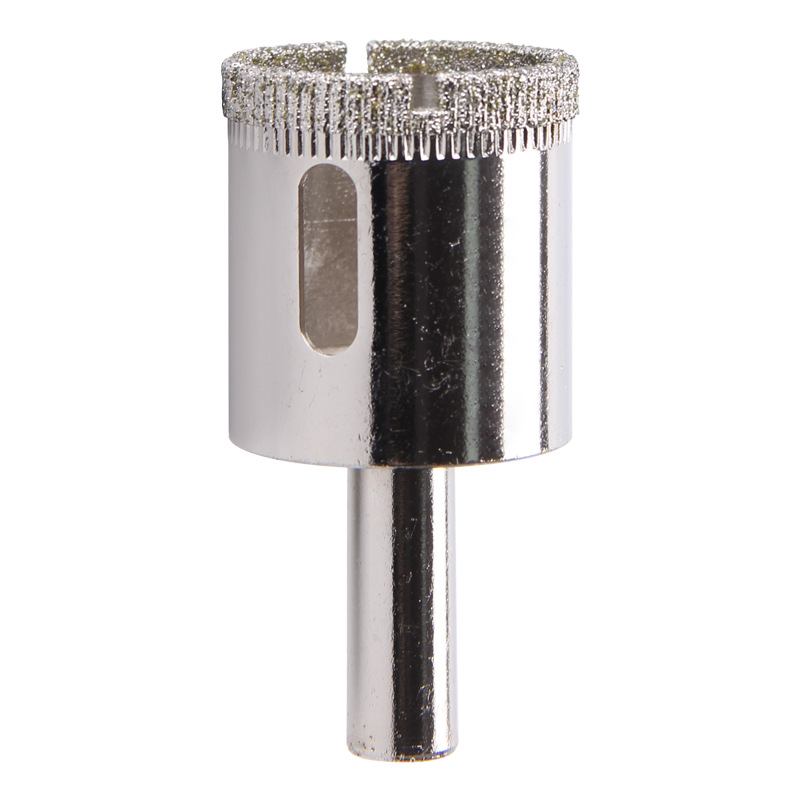

- Electroplated Diamond: Diamond particles are coated with a thin layer of nickel (or other metals) and bonded to the saw’s steel rim. This method is cost-effective, lightweight, and ideal for cutting glass, ceramic, and soft stone. Electroplated saws have a single layer of diamonds, so they’re best for light to medium-duty use.
- Brazed Diamond: Diamond particles are fused to the rim using a high-temperature brazing process, creating a thicker, more durable cutting edge. Brazed diamond hole saws have multiple layers of diamonds, making them suitable for heavy-duty applications like concrete, granite, or reinforced tile. They retain diamonds longer and resist wear better than electroplated models.
Diamond Grit Size: Grit size (measured in microns) affects cutting speed and finish:
- Fine grit (100–200 microns): Produces smooth, polished holes (ideal for glass or ceramic tiles).
- Coarse grit (300–500 microns): Cuts faster but leaves a slightly rougher finish (best for concrete or stone).

2. Core Design for Stability & Cooling

Diamond hole saws feature a hollow core with design elements that enhance performance and prevent damage:

Hollow Shaft: The hollow core allows water (or coolant) to flow through during cutting, which cools the diamond edge, reduces friction, and flushes away debris. This is critical for preventing overheating (which can damage diamonds) and chipping in brittle materials.
Reinforced Rim: The cutting rim is often reinforced with steel or carbide to prevent warping or breaking when cutting hard materials. Some models have a “segmented” rim (with gaps between diamond segments) to improve debris removal and reduce vibration.
Pilot Drill Compatibility: Many diamond hole saws include a pilot drill (or arbor with a pilot drill) to guide the tool and prevent slipping on smooth surfaces like glass. Pilot drills are typically carbide-tipped for durability.

3. Material Compatibility & Versatility

Diamond hole saws are engineered to cut materials that conventional hole saws can’t handle, including:

Brittle materials: Glass, ceramic, porcelain tile, mosaic tile, and quartz.
Natural stone: Granite, marble, limestone, and travertine.
Concrete & masonry: Cement board, concrete blocks, and brick.
Other hard materials: Fiberglass, composite countertops, and sintered stone (e.g., Dekton).

They come in a wide range of diameters, from small 6mm holes for plumbing fixtures to large 100mm+ holes for ventilation ducts or sink cutouts.

4. Compatibility with Power Tools

Diamond hole saws work with most standard power tools, including:

Corded/cordless drills (18V+ recommended for heavy-duty use).
Drill presses (for maximum precision, ideal for professional projects).
Wet drills (specialized tools for continuous water cooling, common in tile and stone work).

They use universal arbors (1/4″, 3/8″, or 1/2″) to fit most drill chucks, making them easy to integrate into existing toolkits.

Technical Specifications to Consider

When choosing a diamond hole saw, focus on these technical details to match the tool to your project:

Cutting Diameter: Measure the required hole size (metric or imperial) before purchasing. Common sizes range from 6mm (1/4″) to 100mm (4″), with specialty sizes up to 200mm+ for industrial use.
Diamond Bond Type: Electroplated (budget-friendly, light-duty) vs. brazed (durable, heavy-duty).
Rim Thickness: Thicker rims (1.5mm–2.0mm) offer more durability but may require slightly larger holes. Thinner rims (1.0mm–1.2mm) cut faster and produce more precise holes (ideal for glass or tile).
Maximum RPM: Diamond hole saws operate at lower RPM than HSS saws—recommended speeds range from 300–1500 RPM (slower for hard materials like concrete, faster for glass/ceramic). Excess RPM can overheat diamonds and reduce tool life.
Cooling Requirements: Most diamond hole saws require water cooling (wet cutting) to prevent chipping and extend life. Some models are designed for dry cutting (e.g., for soft stone), but wet cutting is always preferred for best results.

Advantages of Diamond Hole Saws Over Traditional Tools

Diamond hole saws outperform HSS, bi-metal, or carbide hole saws in key ways, especially for hard materials:

1. Unmatched Hardness for Ultra-Hard Materials

Diamond is the hardest known material (Mohs hardness 10), so diamond hole saws can cut through materials that would dull or break conventional tools—including glass, granite, and concrete. They don’t “tear” material like toothed saws; instead, they grind it smoothly, reducing the risk of cracking in brittle materials.

2. Clean, Chip-Free Cuts

Unlike HSS saws that leave burrs in metal or spade bits that tear wood, diamond hole saws produce smooth, precise, chip-free holes in brittle materials. This is critical for projects like tile installation, glass fabrication, or stone countertops, where a clean finish is non-negotiable.

3. Longer Lifespan with Proper Use

When used with water cooling and proper RPM, diamond hole saws last significantly longer than traditional hole saws—especially when cutting hard materials. Brazed diamond models can withstand hundreds of cuts in concrete or granite, making them cost-effective for professionals.

4. Versatility Across Hard Materials

A single diamond hole saw can cut through multiple hard materials (e.g., tile, glass, and stone), eliminating the need for specialized tools for each material. This versatility saves time and money for both DIYers and professionals.

5. Reduced Vibration & Noise

Diamond hole saws grind material rather than shear it, resulting in less vibration and noise than toothed hole saws. This makes them easier to control and more comfortable to use for extended periods.

Practical Applications of Diamond Hole Saws

Diamond hole saws are essential for projects involving hard, brittle materials—here are their most common uses:

1. Home Improvement & DIY

Tile Installation: Cutting holes in ceramic, porcelain, or mosaic tiles for faucets, showerheads, or towel bars.
Bathroom/Kitchen Renovations: Drilling holes in quartz, granite, or marble countertops for sinks, soap dispensers, or electrical outlets.
Glass Projects: Creating holes in glass shelves, mirrors, or windows for hardware or lighting.
Masonry Work: Drilling holes in concrete walls or brick for plumbing pipes, electrical wiring, or curtain rods.

2. Professional Trades

Construction: Cutting holes in concrete slabs, cement board, or stone facades for utilities or structural components.
Tile & Stone Contracting: Installing tile backsplashes, shower enclosures, or stone countertops (requires precise, chip-free holes).
Glass Fabrication: Creating holes in architectural glass, stained glass, or glass furniture for hardware or fittings.
Plumbing & Electrical: Drilling holes in hard materials for pipes, conduit, or electrical boxes in commercial buildings.

3. Industrial & Specialty Uses

Aerospace: Cutting holes in composite materials (e.g., carbon fiber) or ceramic components for aircraft.
Automotive: Drilling holes in fiberglass or carbon fiber body panels for custom modifications.
Manufacturing: Creating holes in sintered stone, engineered quartz, or ceramic parts for industrial machinery.

Tips for Using Diamond Hole Saws Effectively

To maximize performance and extend the life of your diamond hole saw, follow these best practices:

Always Use Water Cooling (Wet Cutting): For most materials (glass, tile, stone, concrete), apply a steady stream of water to the cutting area. This cools the diamonds, flushes debris, and prevents chipping. Use a spray bottle, wet drill, or water reservoir for continuous cooling.
Set the Right RPM: Start with low RPM (300–500 RPM) for hard materials like concrete or granite. Increase to 1000–1500 RPM for glass or ceramic, but never exceed the manufacturer’s recommended speed.
Apply Light, Steady Pressure: Let the diamond grit do the work—avoid forcing the saw into the material. Excess pressure can crack brittle materials or wear down diamonds prematurely.
Secure the Workpiece: Use clamps or a vice to hold the material in place, especially for smooth surfaces like glass. This prevents slipping and ensures straight, precise holes.
Start with a Pilot Hole (If Possible): For large holes (25mm+), drill a small pilot hole first to guide the diamond saw. For glass, use a center punch (with light pressure) to create a starting indent.
Clean the Saw After Use: Rinse the diamond rim with water to remove debris and prevent diamond clogging. Store in a dry place to avoid rust.
Replace Worn Saws: If the saw slows down, produces rough cuts, or shows visible diamond wear, replace it—dull diamonds can cause chipping or breakage.
