Mastering Concrete Drilling: The Science Behind Modern Drill Bits and Cutting-Edge Technologies

Beyond Brute Force: Precision Engineering for Modern Construction

Concrete drill bits represent the pinnacle of materials science and mechanical engineering, transforming raw power into controlled cutting action. Unlike standard drill bits, these specialized tools incorporate advanced geometries, ultra-hard materials, and vibration-dampening technologies to conquer reinforced concrete, granite, and composite masonry. With global infrastructure demands escalating, the evolution of concrete drilling technology has accelerated, delivering unprecedented precision and efficiency for both professional contractors and serious DIY enthusiasts.

I. Anatomy of High-Performance Concrete Drill Bits

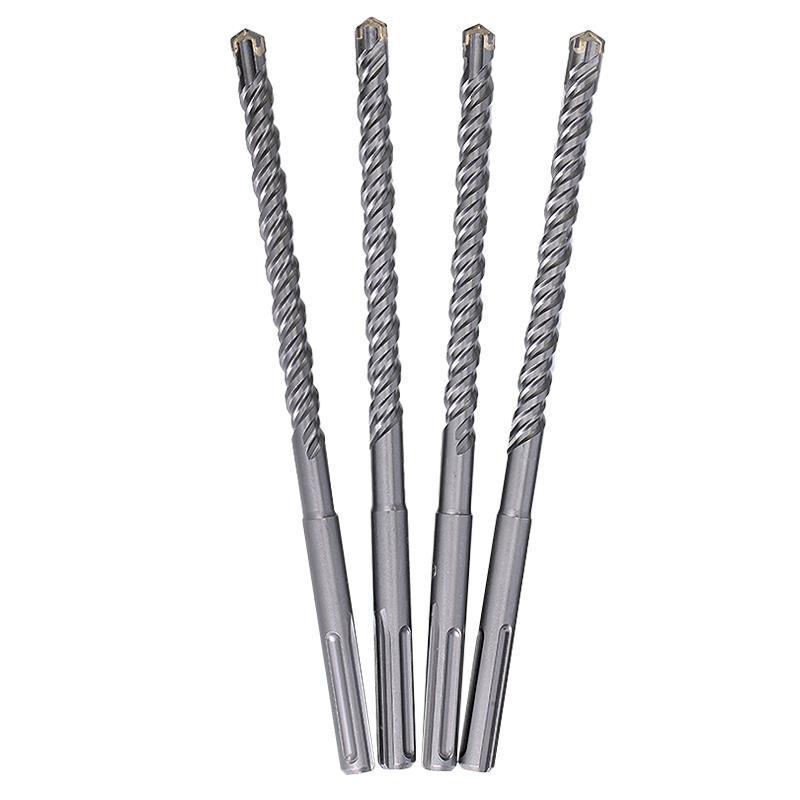

1. Hammer Drill Bits: Impact-Optimized Warriors

• 4-Cutter Carbide Tips: Cross-shaped tungsten carbide tips (e.g., YG8C grade) crush aggregate and shear rebar simultaneously, distributing impact forces evenly across four cutting edges .
• Dust-Evacuation Flutes: Milled (not rolled) double-spiral flutes in Cr40 alloy steel create an “airlift effect,” removing 95%+ of debris without manual clearing—critical for overhead drilling .
• Shock-Absorbing Shanks: SDS-MAX systems transfer up to 2.6 joules of impact energy from hammer drills while minimizing vibration transmission to the operator .

Table: Heavy-Duty Hammer Bit Specifications

2. Diamond Core Bits: Precision Cutting Revolution

• Laser-Welded Segments: Industrial diamonds (30–50 grit) bonded via laser welding to steel bodies withstand 600°C+ temperatures, eliminating braze failure in deep pours .
• Wet vs. Dry Designs:
  • Wet Bits: Use water-cooling for reinforced concrete, extending lifespan 3X (e.g., 152mm bits drilling 40cm-thick walls) .
  • Dry Bits: Turbo-segmented edges air-cool during brick/block drilling, enabling cordless operation .
• Threaded Compatibility: M22 x 2.5 and 5/8″-11 threads ensure universal mounting on core rigs from brands like VEVOR and STIHL .

II. Cutting-Edge Technologies Redefining Performance

1. Advanced Materials Science

• Shaped Cutter Geometry: Festool’s StayCool™ 2.0 and Baker Hughes’ StabilisX™ cutter designs reduce friction by 30%, preventing thermal cracking in silica-rich concrete .
• Chromium-Nickel Coatings: Electrochemically applied coatings combat abrasion wear when drilling sandstone or recycled aggregate concrete .

2. Dust & Vibration Control

• Integrated Extraction: Festool’s KHC 18 hammer syncs with dust extractors via Bluetooth®, capturing 99% of crystalline silica dust .
• Harmonic Dampeners: STIHL’s anti-vibration system reduces operator fatigue during extended drilling in 150mm+ cores .

3. Smart Drilling Systems

• Electronic KickbackStop: Automatically disengages drive gears if rebar jams the bit, preventing wrist injuries .
• 2-Speed Transmissions: STIHL BT 45’s dual-range gearbox optimizes RPMs for concrete (910 RPM) vs. granite (580 RPM) .

III. Selecting the Right Bit: Project-Optimized Solutions

1. By Material Type

• Reinforced Concrete: 4-cutter SDS-MAX bits (32mm+) crush aggregate around rebar .
• Granite/Quartzite: Segmented diamond cores (e.g., TOTAL 152mm) with ballistic-shaped inserts .
• Brick/Soft Masonry: Parabolic-tip SDS Plus bits minimize blowout .

2. By Hole Specifications

• Small Anchors (6–12mm): Carbide-tipped hammer bits with 130° tip angles .
• Utility Penetrations (100–255mm): Wet diamond cores on 4450W rigs (e.g., VEVOR’s 580 RPM machine) .
• Deep Foundations (400mm+): Extension-compatible SDS-MAX systems (e.g., Torkcraft MX54032) .

IV. Beyond Drilling: Maximizing Efficiency & Longevity

1. Rig-Bit Synergy

• Match bits to tool specs: VEVOR’s 4450W motor requires M22-threaded cores for 255mm holes .
• STIHL BT 45’s core adapter enables petrol-to-electric flexibility on remote sites .

2. Cooling Protocols

• Wet Drilling: Maintain 1.5 L/min water flow to prevent segment glazing .
• Dry Drilling: Limit continuous operation to 45-second intervals (10-second cooldowns) .

3. Maintenance Mastery

• Carbide Bits: Resharpen with diamond files after 150 holes (never bench-grind) .
• Diamond Cores: “Re-Open” clogged segments via 30-second granite abrasion drill .

V. The Future: Smart Bits & Sustainable Drilling

Emerging innovations include:

• IoT-Enabled Bits: RFID-tagged cores transmitting wear data to rig dashboards.
• Recyclable Segments: Laser-detachable diamond heads for eco-friendly replacement .
• Hybrid Cutters: Baker Hughes’ Prism™ geometry combining impact durability with ROP optimization .
