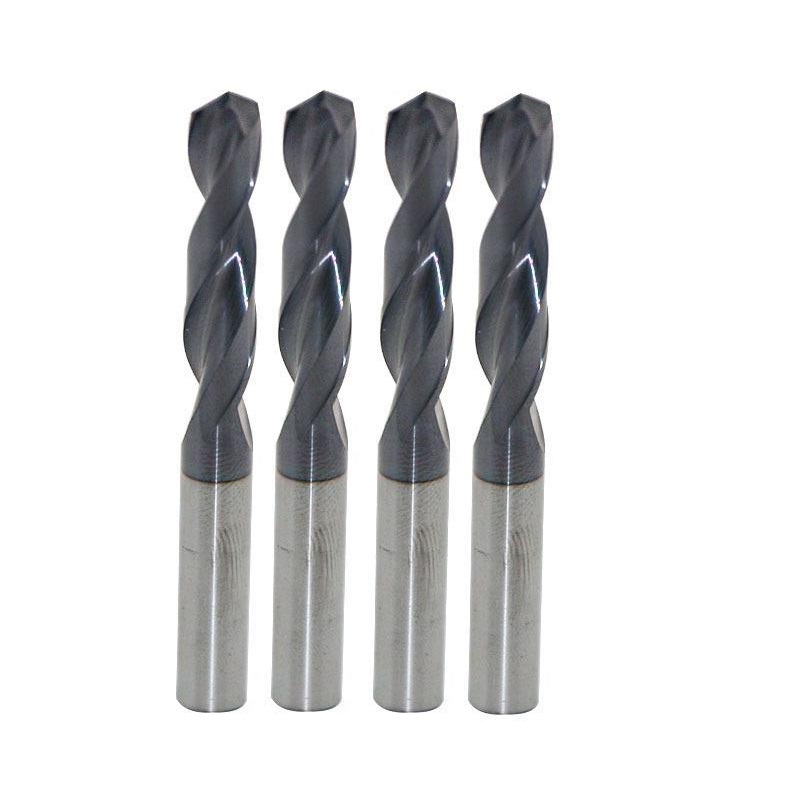

Solid Carbide Drill Bits: A Comprehensive Guide

Technical Information​

Material Composition​

Solid carbide drill bits are primarily made from tungsten carbide, a compound renowned for its extreme hardness and wear resistance. Tungsten carbide is combined with a binder metal, usually cobalt, in varying percentages. The cobalt content can range from 3% to 15%, with lower cobalt percentages resulting in harder but more brittle bits, while higher cobalt content offers more toughness at the cost of some hardness. This unique composition gives solid carbide drill bits their ability to withstand high temperatures and extreme cutting forces.​

Coating Technologies​

1. Titanium Aluminum Nitride (TiAlN) Coating: This is a popular coating for solid carbide drill bits. TiAlN coatings offer high wear resistance and lower friction. When drilling materials like steel and cast iron, the TiAlN coating can withstand elevated temperatures, allowing for higher cutting feeds and speeds. It also improves the hole quality in terms of roundness, straightness, and surface roughness. For example, in general – purpose drilling in steel and cast iron, TiAlN – coated solid carbide drills with a 140° point – angle provide good centering and low thrust, and their wave – shaped cutting edges contribute to stable torque and long tool life.​

2. Diamond – Like Carbon (DLC) Coating: Specifically designed for high – performance drilling in aluminum and aluminum alloys, DLC – coated solid carbide drill bits are extremely hard with a very low coefficient of friction. The coating has excellent adhesion resistance. The flute shape and geometry of these drills are optimized for maximum chip removal, with polished flutes for improved chip control and evacuation. The optimized point thinning prevents clogging from chip welding, and the smooth finish prevents built – up edge, enabling high – speed drilling in aluminum with excellent hole quality.​

3. Aluminum Chromium Nitride (AlCrN) Coating: Solid carbide drills with an AlCrN coating are designed for high – feed applications in steel and cast iron. The coating increases wear resistance and reduces friction. These drills often feature a unique 3 – flute design that offers higher feed rates compared to conventional 2 – flute drills, further improving hole quality. The 140° point – angle ensures good centering and low thrust, and the advanced wide flute design allows for greater chip evacuation and a longer tool life.​

Geometry and Design Features​

1. Point – Angle: A common point – angle for solid carbide drill bits is 140°. This angle provides good centering when starting the drilling process, reducing the likelihood of the drill bit “walking” or moving off – center. It also helps in lowering the thrust force required during drilling, which is beneficial when working with hard materials.​

2. Flute Shape: The flute shape of solid carbide drill bits is carefully optimized. For example, in drills designed for general drilling in steel and cast iron, the flute shape is optimized for strength and smooth chip evacuation. In drills for aluminum, the flutes are polished to improve chip control and evacuation. The number of flutes can also vary; some high – feed drills feature a 3 – flute design to increase feed rates and improve chip evacuation.​

3. Radius Point Thinning: This design feature improves the self – centering ability of the drill bit and enhances chip – breaking capabilities. By thinning the point of the drill bit with a radius, it can more easily penetrate the workpiece and break the chips into smaller, more manageable pieces, preventing chip clogging and improving the overall drilling process.​

Applications​

Aerospace Industry​

1. Drilling in Titanium Alloys: Titanium alloys are widely used in the aerospace industry due to their high strength – to – weight ratio. Solid carbide drill bits are the go – to choice for drilling in these alloys. Their high hardness and wear resistance allow them to cut through the tough titanium material while maintaining precision. For example, when drilling holes for fasteners in aircraft frames made of titanium alloys, solid carbide drill bits can achieve the tight tolerances required, ensuring the structural integrity of the aircraft.​

2. Machining of Aluminum Components: Aluminum is another commonly used material in aerospace, especially in aircraft wings and fuselages. DLC – coated solid carbide drill bits are ideal for drilling in aluminum. They can achieve high – speed drilling, which is crucial for mass – producing components. The excellent hole quality provided by these drill bits ensures that the components fit together perfectly during assembly.​

Automotive Industry​

1. Drilling in Engine Blocks: Engine blocks are typically made of cast iron or aluminum alloys. Solid carbide drill bits are used to drill holes for engine components such as pistons, valves, and oil passages. Their ability to withstand high cutting forces and maintain accuracy is essential in ensuring the proper functioning of the engine. For example, when drilling oil passages in cast – iron engine blocks, the high – temperature resistance of solid carbide drill bits allows for efficient drilling without premature wear.​

2. Manufacturing of Transmission Parts: Transmission parts, often made of hardened steel, require precise drilling for gear shafts and other components. Solid carbide drill bits can cut through hardened steel, achieving the required hole tolerances for smooth gear operation. Their long tool life also reduces production downtime, making them cost – effective for high – volume automotive manufacturing.​

Medical Device Manufacturing​

1. Drilling in Stainless Steel for Surgical Instruments: Surgical instruments are commonly made of stainless steel. Solid carbide drill bits are used to drill holes in these instruments for features such as hinges and attachment points. The high precision and excellent surface finish provided by solid carbide drill bits are crucial in medical device manufacturing, as any imperfections could affect the performance and safety of the instruments.​

2. Machining of Titanium Implants: Titanium implants, such as hip and knee replacements, require extremely precise drilling to ensure proper fit and integration with the patient’s body. Solid carbide drill bits can meet these stringent requirements, allowing for the creation of holes with tight tolerances and smooth surfaces, which are essential for the success of the implant.​

Advantages​

High Wear Resistance​

The tungsten carbide composition of solid carbide drill bits gives them exceptional wear resistance. Compared to traditional high – speed steel drill bits, solid carbide drill bits can last significantly longer when drilling through hard materials. This means fewer tool changes during production, leading to increased productivity. For example, in a metal – working factory that drills large quantities of stainless – steel parts, using solid carbide drill bits can reduce the frequency of tool replacement from once every few hours to once every few days, depending on the drilling volume.​

Superior Precision​

Solid carbide drill bits can achieve extremely tight hole tolerances, often within a few microns. This precision is crucial in applications where accurate hole placement and size are essential, such as in the manufacturing of electronic components and high – precision mechanical parts. The stable cutting performance of solid carbide drill bits, due to their rigid construction and optimized geometry, ensures that the drilled holes are consistently round and straight.​

Ability to Drill Hard Materials​

As mentioned earlier, solid carbide drill bits can cut through a wide range of hard materials, including hardened steel, titanium alloys, and high – temperature alloys. This makes them indispensable in industries where such materials are commonly used. In contrast, high – speed steel drill bits may struggle or even break when attempting to drill these hard materials, highlighting the superiority of solid carbide drill bits in these applications.​

Higher Cutting Speeds and Feeds​

Thanks to their high – temperature resistance and wear – resistant coatings, solid carbide drill bits can operate at higher cutting speeds and feeds compared to other types of drill bits. This results in faster drilling times, which is a significant advantage in high – volume production environments. For instance, in an automotive parts manufacturing plant, using solid carbide drill bits can reduce the time taken to drill a batch of engine block holes by up to 50% compared to using traditional drill bits, leading to increased production output.​

In conclusion, solid carbide drill bits are a highly versatile and efficient tool in the machining and drilling world. Their advanced technical features, wide range of applications, and numerous advantages make them a preferred choice for industries that demand high – quality, precision drilling operations. Whether it’s in aerospace, automotive, or medical device manufacturing, solid carbide drill bits continue to play a vital role in driving innovation and improving production processes.
