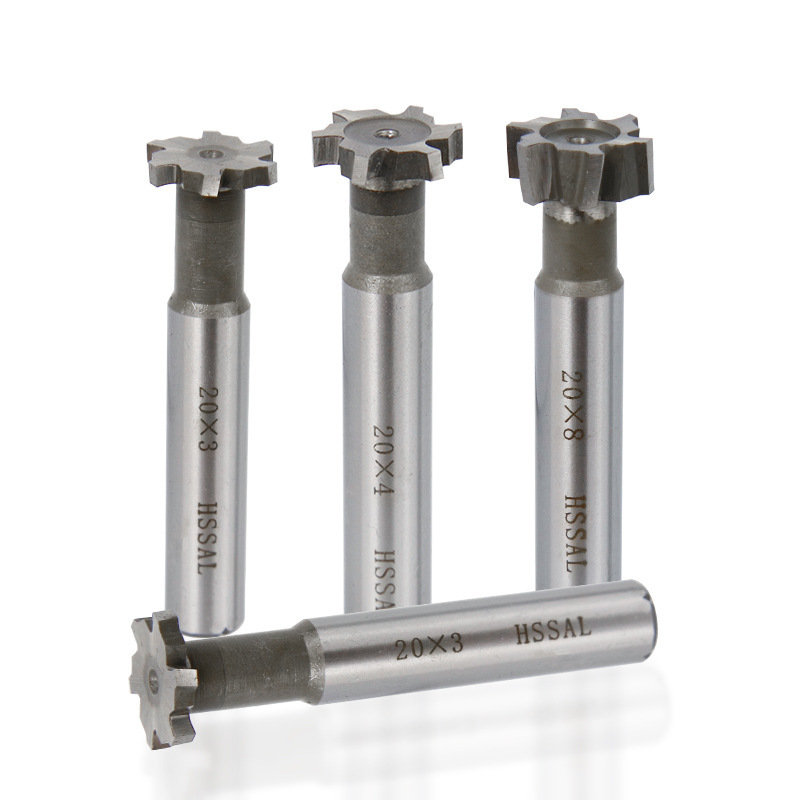

T Type HSS Flute Milling Cutter | High Precision T-Slot Milling Tool
Core Product Features:
Our T type HSS flute milling cutter adopts M2 high-speed steel blanks, hardened to HRC 62–64 with staggered multi-flute geometry.
Straight DIN1835 standard shank fits most vertical mills and CNC equipment.
Symmetric T-shaped cutting head enables 3-side simultaneous cutting for one-step T-slot forming, eliminating secondary finishing.
Optimized flute gaps boost chip evacuation to avoid built-up edge during continuous machining.
Key Technical Data Material: M2 HSS high-speed steel Flute quantity: 6–8 flutes Size range: Cutting dia 8–32mm, slot width 1–10mm
Overall length: 60–90mm, shank tolerance h6 Helix angle: 10°, meets DIN650 T-slot standard
Competitive Advantages Strong heat resistance, retains hardness under high RPM cutting Smooth cutting,
low vibration for burr-free workpiece surfaces Universal compatibility: steel, cast iron, aluminum & copper alloys Long service life,
lower tool replacement cost vs generic cutters Complete size series for mold, fixture & machinery base grooving
Application & CTAIdeal for mold making, mechanical fixture and equipment base T-slot processing.
Contact us to get customized T type HSS flute milling cutter sizes and bulk factory pricing.
Material: HSS

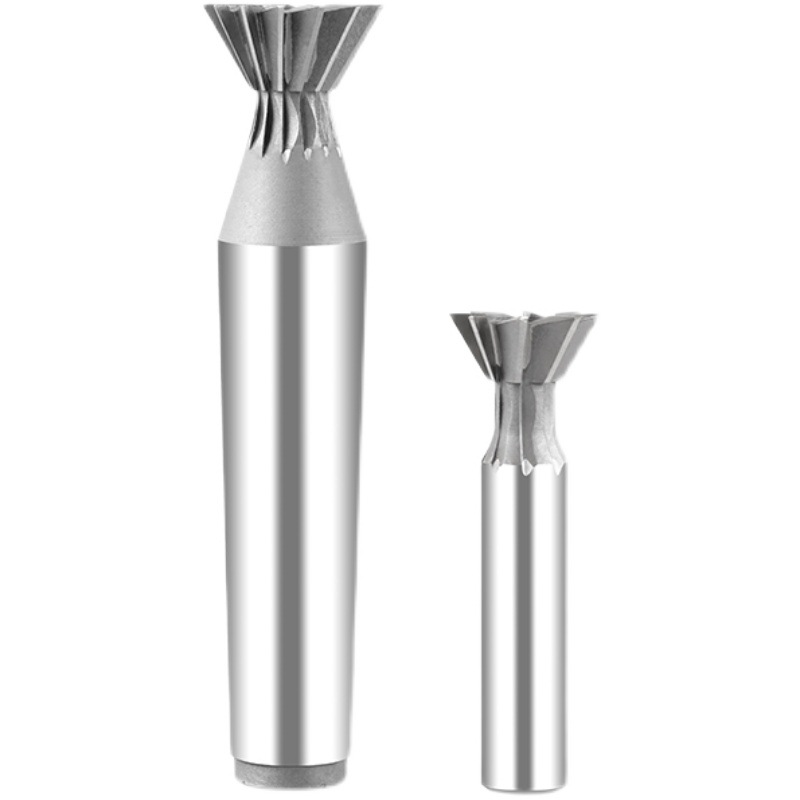

Morse taper shank or staight shank
Size:10*45°-60°,12*45°-60°,14*45°-60°,16*45°-60°,18*45°-60°,
20*45°-60°,25*45°-60°,32*45°-60°,35*45°-60°,40*45°-60°,
45*45°-60°,50*45°-60°,60*45°-60°
Specific end geometry
Durability, versatility, and cost-effectiveness
