The Complete Guide to Diamond Burrs: Precision Tools for Professional Applications

Introduction to Diamond Burrs

Diamond burrs represent the pinnacle of precision grinding and shaping technology, offering professionals unmatched cutting performance across a wide range of materials. These specialized rotary tools feature industrial diamonds bonded to their surfaces, creating exceptionally durable and efficient cutting instruments that outperform conventional abrasives in precision applications. Unlike standard burrs that dull quickly when working with hard materials, diamond burrs maintain their cutting efficiency through countless applications, making them indispensable tools for professionals in industries ranging from dentistry and jewelry making to aerospace manufacturing and stone carving.

The fundamental advantage of diamond burrs lies in their exceptional hardness and wear resistance. Diamonds, being the hardest known natural material, effectively grind through virtually any substance when properly engineered into a burr design. This unique property allows these tools to maintain their cutting edges significantly longer than conventional alternatives, providing consistent performance and superior results across extended periods of use. Whether shaping delicate jewelry components or removing hard materials in industrial applications, diamond burrs deliver precision and reliability that other tools simply cannot match.

Types and Classifications of Diamond Burrs

Diamond burrs come in various configurations, each designed to address specific grinding challenges and material types. Understanding these classifications is essential for selecting the appropriate burr for any given application.

By Manufacturing Method

Electroplated Diamond Burrs: These feature a single layer of diamond particles bonded to the tool surface through an electrochemical process. Electroplated burrs offer aggressive cutting action and are ideal for applications requiring fast material removal. While they typically have a shorter lifespan than sintered alternatives, their lower cost makes them popular for many applications.

Sintered Diamond Burrs: Manufactured through a high-temperature process that bonds multiple layers of diamond particles to the tool substrate, sintered burrs offer extended service life and more consistent performance. As the outer layer wears away, fresh diamond particles are exposed, maintaining cutting efficiency throughout the tool’s lifespan.

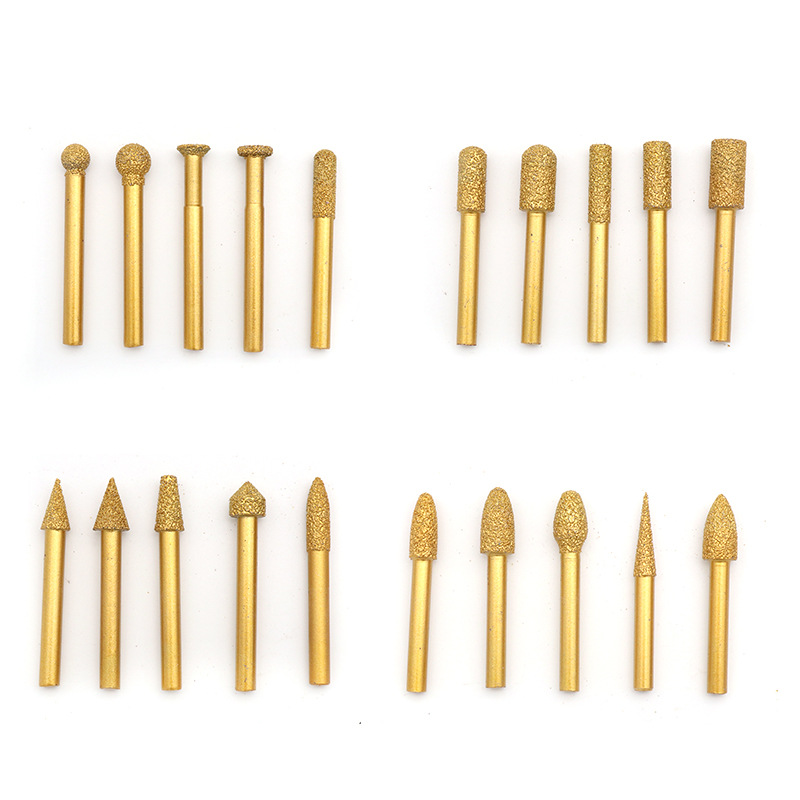

By Shape and Geometry

Diamond burrs are available in numerous shapes, each designed for specific tasks and applications:

• Cylindrical burrs: Ideal for creating flat-bottomed holes and slots
• Ball-shaped burrs: Perfect for concave surfaces and contoured grinding
• Tree-shaped burrs: Excellent for deburring and working in confined spaces
• Inverted cone burrs: Designed for v-grooves and angled surfaces
• Flame-shaped burrs: Versatile tools for general-purpose grinding and shaping

By Grit Size

Diamond burrs are categorized by grit size, which determines the aggressiveness of cut and surface finish:

• Coarse grit (60-120): For rapid material removal
• Medium grit (150-280): Balanced cutting and finishing
• Fine grit (320-600): For finishing and precision work
• Extra-fine grit (600+): For polishing and ultra-fine detailing

Technical Specifications and Design Features

Diamond burrs incorporate sophisticated engineering and precise manufacturing standards to ensure optimal performance across various applications.

Diamond Quality and Concentration

The performance of a diamond burr depends significantly on the quality and concentration of diamonds used in its construction. Industrial-grade diamonds are carefully selected based on size, shape, and strength characteristics to match specific grinding requirements. Higher diamond concentrations typically result in longer tool life but may reduce cutting aggressiveness.

Bonding Materials

The matrix that holds the diamonds in place plays a critical role in determining a burr’s performance characteristics. Common bonding materials include:

• Nickel bonds: Offer good durability and wear characteristics
• Bronze bonds: Provide excellent diamond retention for aggressive applications
• Hybrid bonds: Combine multiple materials for optimized performance

Shank Specifications

Diamond burrs are available with various shank diameters to accommodate different tool systems:

• 1/8″ (3.175mm): Standard size for most rotary tools
• 1/4″ (6.35mm): For heavier-duty applications
• 3mm: Common metric size for precision tools
• 2.35mm: For specialized applications and smaller tools

Table: Diamond Burr Technical Specifications

Advantages and Benefits of Diamond Burrs

The superiority of diamond burrs over conventional grinding tools manifests in multiple aspects of material processing, providing tangible benefits to professionals across industries.

Exceptional Longevity and Durability

Diamond burrs offer significantly extended service life compared to conventional abrasive tools. Their diamond-impregnated surfaces resist wear even when working with the hardest materials, reducing replacement frequency and downtime. This durability makes them particularly cost-effective for production environments where tool changes would significantly impact productivity.

Superior Cutting Precision

The consistent particle size and distribution in quality diamond burrs enable unmatched precision in material removal applications. This precision is particularly valuable in industries like jewelry making, dentistry, and electronics manufacturing, where minute details significantly impact the final product quality.

Versatility Across Materials

Diamond burrs demonstrate remarkable versatility, capable of grinding and shaping an extensive range of materials including:

• Hard metals: Tungsten carbide, hardened steel, cobalt alloys
• Precious metals: Gold, silver, platinum
• Ceramics and glass: Porcelain, technical ceramics, optical glass
• Stone and composites: Marble, granite, fiber-reinforced materials
• Hardened plastics: Acrylics, epoxies, and engineering plastics

Reduced Heat Generation

Properly engineered diamond burrs generate less heat during operation compared to conventional abrasives. The sharp diamond particles remove material more efficiently, reducing friction and minimizing the risk of thermal damage to both the workpiece and the tool itself.

Consistent Performance

Throughout their lifespan, diamond burrs maintain consistent cutting characteristics, unlike conventional abrasives that dull progressively. This consistency ensures predictable results and reduces the need for operator adjustments during extended work sessions.

Applications and Uses of Diamond Burrs

Diamond burrs serve critical functions across diverse industries, each with specific requirements that leverage the unique capabilities of these advanced tools.

Dental and Medical Applications

In the dental industry, diamond burrs are essential tools for precision tooth preparation, bone shaping, and prosthesis adjustment. Medical manufacturers use specialized diamond instruments for creating and modifying surgical tools, orthopedic implants, and other medical devices requiring exceptional precision and surface quality.

Jewelry Making and Goldsmithing

Jewelry professionals rely on diamond burrs for intricate metal shaping, stone setting preparation, ring resizing, and detail work. Their ability to work precisely with precious metals without introducing contamination makes them invaluable in this industry.

Industrial Manufacturing and Metalworking

In industrial settings, diamond burrs are used for deburring precision components, modifying tooling, shaping hardened metals, and preparing surfaces for welding or bonding. The aerospace and automotive industries particularly value these tools for working with difficult-to-machine materials like titanium and carbon composites.

Electronics and Semiconductor Industry

The electronics industry utilizes ultra-precise diamond burrs for modifying circuit boards, shaping ceramic components, and working with brittle materials that require careful handling. The semiconductor industry uses specialized diamond tools for wafer processing and equipment maintenance.

Stone, Glass, and Ceramic Working

Artisans and industrial manufacturers use diamond burrs for shaping hard brittle materials like granite, marble, glass, and technical ceramics. Their ability to work these materials without causing fractures or chips makes them essential for precision work in these fields.

Woodworking and Specialty Applications

Even in woodworking, diamond burrs find applications for shaping reinforced composites, modifying tooling, and working with abrasive materials that would quickly destroy conventional cutting tools. Additionally, they’re used in restoration work for repairing and matching intricate details in various materials.

Selection Guidelines and Usage Tips

Choosing the appropriate diamond burr for a specific application requires careful consideration of multiple factors to ensure optimal performance and cost-effectiveness.

Material Compatibility Assessment

The first step in selecting a diamond burr involves identifying the primary material to be worked. Different materials require specific burr characteristics:

• Hard metals: Sintered burrs with durable bonds
• Soft materials: Electroplated burrs with sharper diamond particles
• Brittle materials: Fine-grit burrs to prevent chipping
• Abrasive composites: Dense diamond concentration for extended life

Tool Compatibility Check

Ensuring compatibility between the diamond burr and the grinding equipment is essential for both safety and performance:

• Shank size compatibility: Verify match between burr shank and tool collet
• Speed requirements: Ensure equipment can provide appropriate RPM ranges
• Tool capacity: Verify that the tool can handle the burr size without vibration

Operational Best Practices

Proper operation significantly extends burr life and ensures optimal performance:

• Adequate cooling: Use appropriate coolants when possible to extend life
• Optimal pressure: Let the tool do the work—excessive pressure reduces efficiency
• Consistent motion: Avoid dwelling in one area to prevent uneven wear
• Speed adjustment: Modify RPM based on material and burr size

Maintenance and Storage

Proper maintenance extends diamond burr life and maintains cutting performance:

• Thorough cleaning after each use to remove material from between diamonds
• Proper storage in protective containers to prevent diamond damage
• Regular inspection for wear or damage before each use
• Sharpening procedures for sintered burrs when cutting performance decreases

Innovations and Future Trends in Diamond Burr Technology

The diamond tool industry continues to evolve, with ongoing research and development focused on enhancing performance, expanding applications, and reducing costs.

Advanced Materials and Manufacturing

Recent advancements in material science have led to significant improvements in diamond burr technology. The development of engineered diamond particles with carefully controlled shapes and sizes has enabled manufacturers to optimize cutting aggression and surface finish for specific applications.

Specialized Coatings and Treatments

New protective coatings are being developed to reduce material adhesion and enhance lubricity during cutting operations. These coatings particularly benefit applications involving gummy materials like aluminum or certain plastics that traditionally clog conventional abrasives.

Customized Solutions

Manufacturers are increasingly offering application-specific burr designs tailored to particular industries or materials. These specialized tools optimize performance for specific tasks, resulting in improved efficiency and better results.

Integration with Automated Systems

The future of diamond burr technology includes greater integration with computer-controlled equipment and robotics. Smart systems that adjust parameters in real-time based on feedback are becoming more prevalent, particularly in production environments where consistency is critical.

Environmental and Efficiency Considerations

Growing emphasis on sustainability is driving innovation in longer-lasting tools that reduce waste and energy consumption. The extended life of diamond burrs compared to conventional abrasives already contributes to these goals, and further improvements continue to enhance their environmental profile.

Conclusion: The Future of Precision Grinding with Diamond Burrs

Diamond burrs have established themselves as indispensable tools across numerous industries, offering unmatched performance in precision grinding and shaping applications. From delicate jewelry work and dental procedures to heavy industrial manufacturing, these advanced tools continue to evolve through continuous innovation in materials, design, and manufacturing processes.

The future of diamond burr technology promises even greater efficiency, precision, and versatility as manufacturers incorporate insights from materials science, digital technologies, and advanced engineering. The ongoing development of specialized burrs for specific applications, coupled with improvements in diamond quality and bonding formulations, will further expand the capabilities of these remarkable tools.

As manufacturing tolerances become tighter and materials more challenging, the importance of diamond burr technology will only increase. Professionals across industries can expect to see continued advancements that enhance grinding efficiency, reduce operational costs, and enable new applications that are currently beyond our technical capabilities.

Whether creating intricate jewelry designs, preparing teeth for restorations, finishing precision aerospace components, or shaping advanced composites, diamond burrs will continue to play a vital role in enabling precision work across countless applications. Their unique combination of durability, precision, and versatility ensures they will remain essential tools for professionals who demand the best results from their grinding operations.
