The Ultimate Guide to Carbide Tip Drill Bits: Technical Data, Specifications, and Applications

In the realm of precision drilling, carbide tip drill bits stand out as indispensable tools for tackling tough materials like hardened steel, cast iron, and composites. Combining durability with high-performance cutting, these bits are engineered to deliver unmatched efficiency in industrial and manufacturing applications. In this comprehensive guide, we explore the technical specifications, material science, and diverse use cases of carbide tip drill bits, with a focus on Shanghai Easydrill, a leading Chinese manufacturer of cutting tools and drill bits.

What Are Carbide Tip Drill Bits?

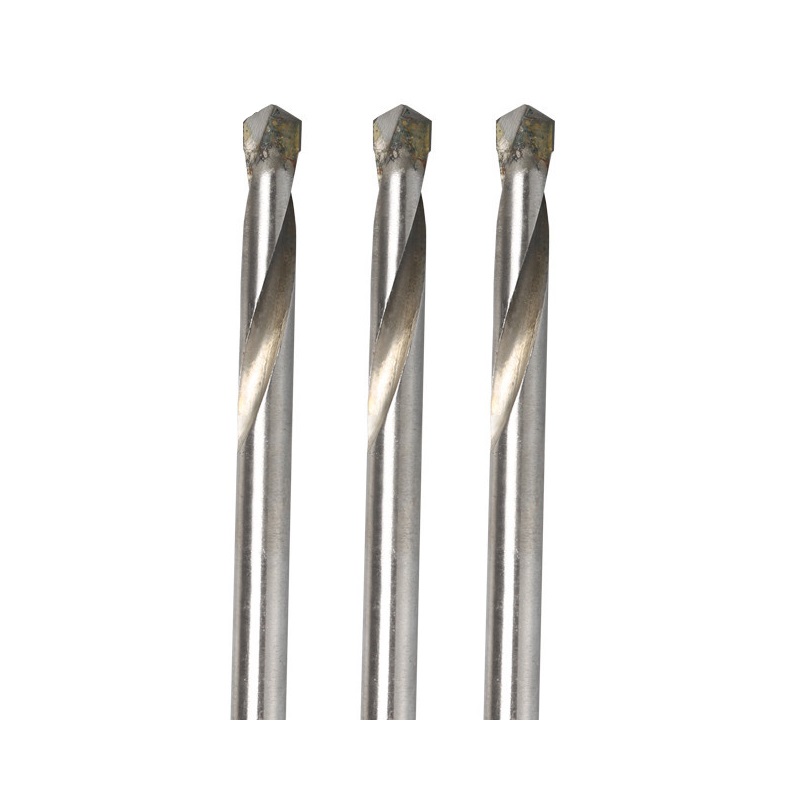

Carbide tip drill bits feature a cutting edge made of tungsten carbide, a compound renowned for its exceptional hardness (up to 90 HRA) and heat resistance 59. The carbide tip is brazed or welded to a steel shank, creating a hybrid tool that balances toughness and wear resistance. These bits excel in high-speed drilling, especially in abrasive or high-temperature environments where traditional HSS (high-speed steel) bits fail.

Technical Data: Key Features

Understanding the technical parameters of carbide tip drill bits ensures optimal performance:

1. Material Composition
   • Tungsten Carbide (WC): Constitutes 85–95% of the tip, providing hardness and wear resistance.
   • Cobalt (Co): Acts as a binder (5–15%), enhancing fracture toughness.
   • Coatings: Titanium nitride (TiN) or diamond coatings reduce friction and extend tool life.
2. Geometry and Design
   • Point Angles: Common angles include 118° (general-purpose) and 135° (hard materials), optimizing chip evacuation and penetration.
   • Flute Design: Spiral flutes (2–4 flutes) improve chip removal in deep drilling applications.
   • Shank Types: Straight, hexagonal, or SDS shanks for compatibility with drills and CNC machines .
3. Performance Metrics
   • Hardness: 88–93 HRA, outperforming HSS by 3–5x.
   • Heat Resistance: Withstands temperatures up to 1,000°C without losing cutting efficiency.
   • RPM Range: Operates at 200–2,000 RPM, ideal for high-speed machining.

Specifications and Standards

Carbide tip drill bits adhere to international standards for precision and reliability:

For example, DIN6539-standard carbide bits feature precision-ground edges for consistent hole diameters, critical in aerospace and automotive manufacturing.

Applications Across Industries

Carbide tip drill bits are pivotal in sectors demanding precision and durability:

1. Aerospace
   • Drilling titanium alloys and carbon fiber composites, where tool longevity and heat management are critical .
2. Automotive
   • Engine block machining, brake rotor drilling, and EV battery component fabrication.
3. Oil and Gas
   • Used in downhole drilling tools for hard rock formations, with enhanced wear resistance.
4. Construction
   • Drilling reinforced concrete and masonry, often paired with rotary hammer drills .
5. Electronics
   • Micro-drilling PCB substrates and semiconductor components (diameters as small as 0.1 mm) .

Why Choose Shanghai Easydrill?

As a premier cutting tools manufacturer in China, Shanghai Easydrill combines advanced metallurgy and CNC grinding technology to produce carbide tip drill bits that meet global demands.

Key Advantages:

• Precision Engineering: Bits are CNC-ground to ±0.01 mm tolerance for consistent performance.
• Custom Solutions: Tailored coatings (e.g., diamond for carbon fiber) and geometries for specialized tasks.
• Quality Assurance: ISO 9001-certified production with rigorous testing for hardness and fatigue resistance.
• Global Reach: Trusted by clients in North America, Europe, and Asia for OEM and industrial applications.

Maintenance Tips for Carbide Bits

• Coolant Use: Employ water-soluble coolants to reduce thermal stress and prolong tool life .
• Speed Control: Avoid excessive RPM to prevent carbide tip chipping .
• Sharpening: Regrind using diamond wheels to maintain cutting geometry .
