How many surface coating for HSS drill bit? and which is better?

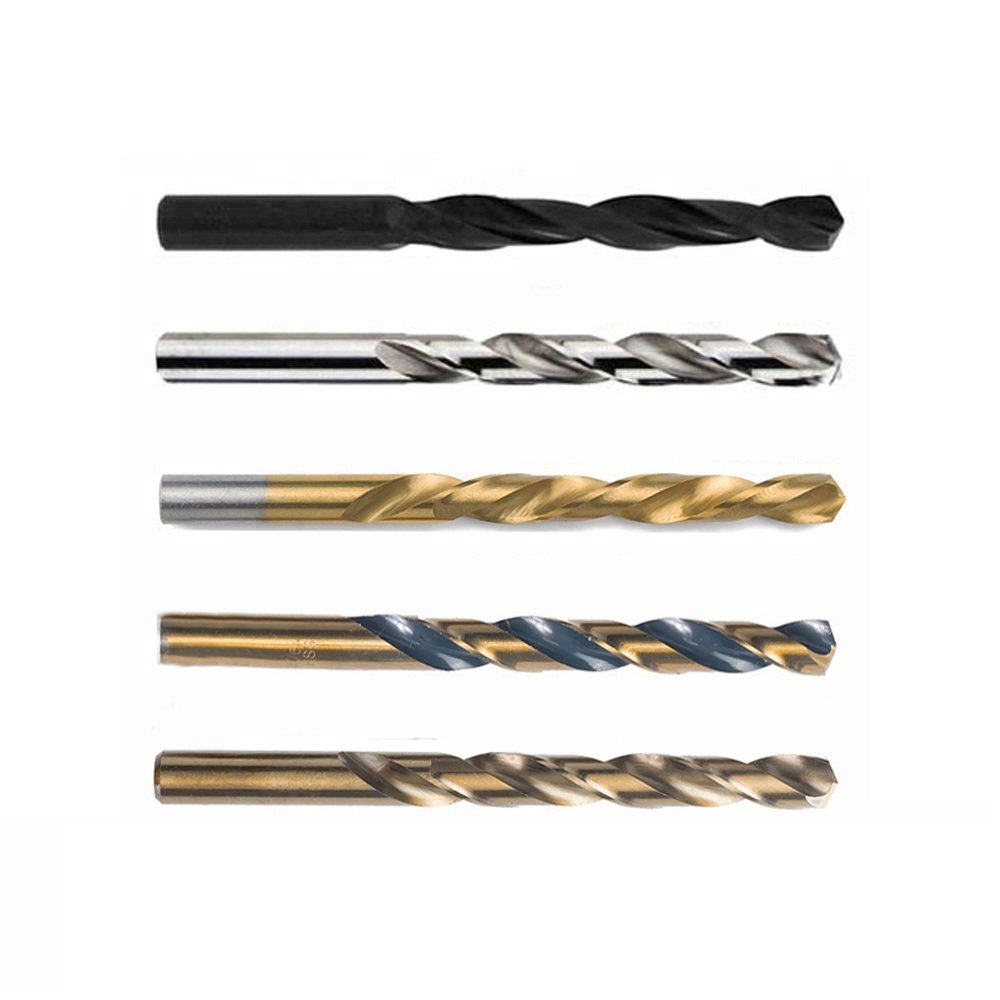

High-speed steel (HSS) drill bits often have different surface coatings designed to improve their performance and durability. The most common surface coatings for high-speed steel drill bits include:

1. Black Oxide Coating: This coating provides a degree of corrosion resistance and helps reduce friction during drilling. It also helps retain lubricant on the drill surface. Black oxide coated drill bits are suitable for general purpose drilling in materials such as wood, plastic and metal.

2. Titanium Nitride (TiN) Coating: TiN coating increases wear resistance and helps reduce friction, thereby extending tool life and improving performance in high-temperature drilling applications. TiN coated drill bits are suitable for drilling hard materials such as stainless steel, cast iron, and titanium.

3. Titanium carbonitride (TiCN) coating: Compared with TiN coating, TiCN coating has higher wear resistance and heat resistance. It is suitable for drilling abrasives and high-temperature materials to improve tool life and performance in demanding drilling applications.

4. Titanium aluminum nitride (TiAlN) coating: TiAlN coating has the highest level of wear resistance and heat resistance among the above coatings. It is suitable for drilling hardened steels, high-temperature alloys and other challenging materials to extend tool life and improve performance in tough drilling conditions.

Which coating is better depends on the specific drilling application and the material being drilled. Each coating offers unique advantages and is designed for different types of materials and drilling conditions. For general purpose drilling in common materials, a black oxide coated drill bit may be sufficient. However, for more demanding applications involving hard or high-temperature materials, TiN, TiCN or TiAlN coated drill bits may be more suitable due to their enhanced wear and heat resistance.
